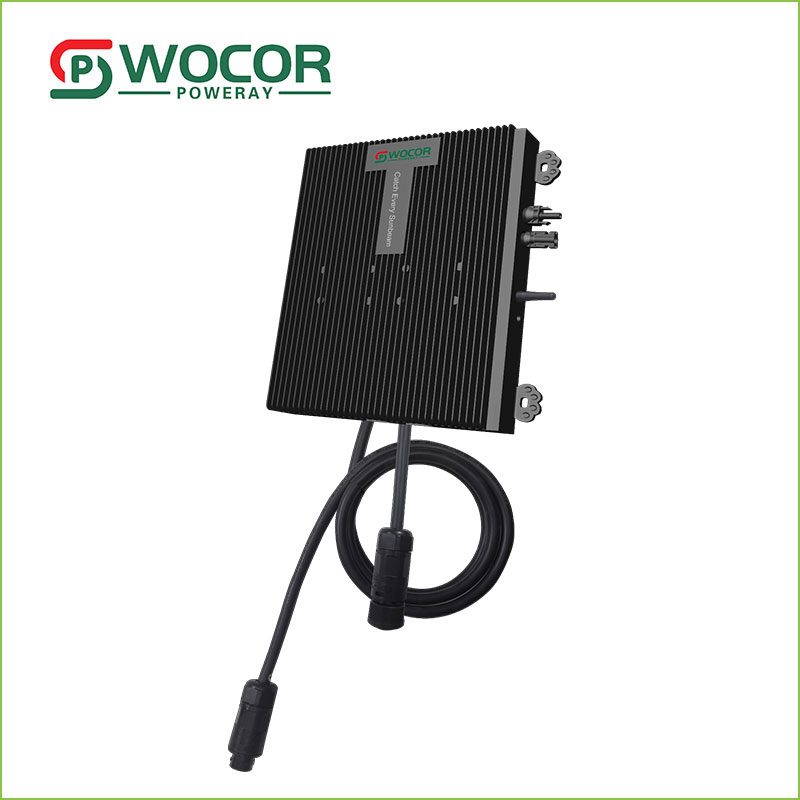

1KW 2MPPT Single-Phase Microinverter
Microinverter is a device that converts direct current from a single solar module to alternating current. The microinverter converts DC power to AC power from individual solar modules. Each solar cell module is equipped with inverter and converter functions. Each component can independently convert current, hence the name "microinverter". equipment". WoCor Poweray newest Tiger series 1KW 2MPPT Single-Phase Microinverter is the industry's first on/off grid solar panel microinverters with split-phase power conversion capability to convert DC power to AC power efficiently.
Send Inquiry PDF DownLoad
Product Description
Our Tiger series 1KW 2MPPT Single-Phase Microinverter have been designed for high reliability, using patented technologies that eliminate the use of short-life electrolytic capacitors. This feature gives WoCor Poweray Tiger series 1KW 2MPPT Single-Phase Microinverter high reliability and a design life of 25 years, matching the design life of PV modules.
The Tiger series 1KW 2MPPT Single-Phase Microinverter is the industry’s first highest power rating microinverter that produces electrical energy from two photovoltaic (“PV”) panels of 400W+ each, without any power clipping under all operating conditions.The Tiger series 1KW 2MPPT Single-Phase Microinverter is designed to connect 2 PV panels, up to 400W-550W, to the AC power grid.
Product information
|
Model |
Tiger-1KW |
|
|
PV Input Data |
||
|
Number of MPPT Trackers |
2 |
|
|
Suggested Modules Range |
400W-550W |
|
|
Max. Input DC Voltage |
60V |
|
|
MPPT Operating Voltage Range |
25-60V |
|
|
Startup Voltage |
20V |
|
|
Overvoltage Class DC Port |
II |
|
|
DC Port Backfeed Current |
0 A |
|
|
Max. Input Current |
2 × 15 A |
|
|
PV Array Requirement |
2x1 Ungrouned array; No Additional PV side protection required |
|
|
AC Output Data |
||
|
Peak Output Power |
3000W |
|
|
Max. Continuous Output Power |
1000W |
|
|
Max. Continuous Output Current |
4.55A |
|
|
Nominal output voltage |
220/230Vac(187-278Vac) |
|
|
Nominal Frequency/Range |
50HZ/60HZ |
|
|
Extended Frequency/Range |
45~55Hz / 55~65Hz |
|
|
AC Short Circuit Current |
7.5A |
|
|
Max. Units Per Branch Circuit |
5 |
|
|
Overvoltage Class AC Port |
III |
|
|
Power Factor(Adjustable) |
>0.99 Default, 0.8 Leading...0.8 Lagging... |
|
|
Level of Harmonics Distortion |
<3% |
|
|
AC Protection Required |
AC output side need 63A circuit breaker(on grid modle) |
|
|
Efficiency |
||
|
CEC Weighted Efficiency |
95% |
|
|
Peak Inverter Efficiency |
95.50% |
|
|
Static MPPT Efficiency |
99% |
|
|
Night Time Power Consumption |
＜50mW |
|
|
Mechanical Data |
||
|
Operating Ambient Temperature Range |
-40 °C to +65 °C(-40 °F to +149 ° F ) |
|
|
Storage Ambinet Temperature |
-40 °C to +85 °C(-40 °F to +185° F ) |
|
|
Relative Humidity Range |
4% to 100% (condensing) |
|
|
Connector type: DC |
MC4 |
|
|
Dimensions(W*H*D) |
218*245*42mm |
|
|
Weight |
3 KG |
|
|
Cooling |
Natural Convection-No Fans |
|
|
Approved for Wet Locations |
Yes |
|
|
Enclosure Rating |
IP67 |
|
|
AC Cable Length(Customizable) |
Standard 2.5m(customized available) |
|
|
Features |
||
|
Communication |
WIFI |
|
|
Monitoring |
Support remote web page monitoring and mobile APP by WoCor Poweray Cloud |
|
|
Compliance |
Inmetro, UL1741, VDE4105, VDE0126, CE,EN50549... |
|
Product Feature And Application of the 1KW 2MPPT Single-Phase Microinverter
Solar panels output voltage <60VDC, decrease the risk of an electrical fire.One panel match one MPPT, increase 5-15% power in production vs string inverters.
Keep each panel to work individually, avoid the impact of partial shadows on the entire solar system
Independently tracking each of solar panels production, easy to identify each solar panel performs.
Flexible application, could switch to off-grid mode to supply AC power to home devices.
Lightweight and compact with plug-and-play connectors, easy to in stall.
App monitor the running station anytime, anywhere.
