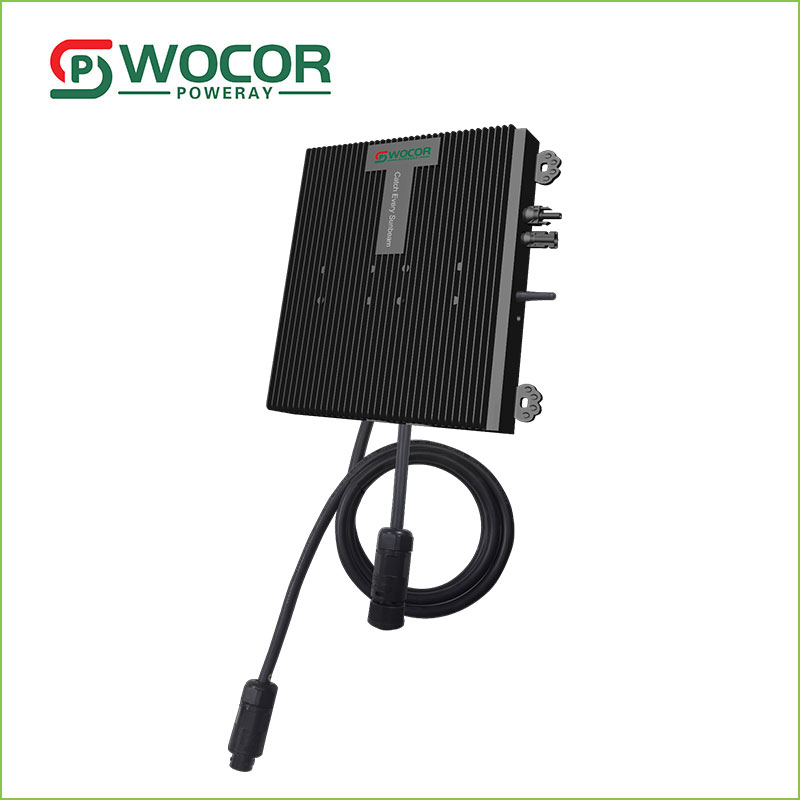

800W 2MPPT Single-Phase Microinverter
As the world shifts from fossil fuels to clean energy, we are pleased to see the deployment of solar systems accelerate around the world, and our microinverters are also recognized by customers in various regions. Wocor is proud to be your reliable partner as we move together towards our goal of energy independence and a greener future. Our newest Tiger series 800W 2MPPT Single-Phase Microinverter is the industry's first on/off grid solar panel microinverters with split-phase power conversion capability to convert DC power to AC power efficiently.
Send Inquiry PDF DownLoad
Product Description
WoCor Poweray Tiger series 800W 2MPPT Single-Phase Microinverter uses plug-and-play technology in order to make your installations faster and easier. Everything snaps together to form a perfect fit. Installation happens with a click even if you are wearing gloves. The Tiger series 800W 2MPPT Single-Phase Microinverter will make sure the solar panel getswith the highest power point tracking to reduce the occlusion effect caused by shadows and other obstacles and improve work efficiency.
The Tiger series 800W 2MPPT Single-Phase Microinverter are game changers for the solar power industry. WoCor Poweray Tiger series 800W 2MPPT Single-Phase Microinverters are on/off grid inverter, which work with our Tribune-EMS series controller will magically create a residential solar storage system that will support battery mode operation without mains power.
And unlike traditional microinverters that have one photovoltaic (PV) module inputting into one microinverter, our Tiger series 800W 2MPPT Single-Phase Microinverters have two individual DC input channels to enable independent peak power tracking for up to two PV modules. This allows significant reduction in installation time and cable costs.
Product information
|
Model |
Tiger-800W |
|
|
PV Input Data |
||
|
Number of MPPT Trackers |
2 |
|
|
Suggested Modules Range |
300W-400W |
|
|
Max. Input DC Voltage |
60V |
|
|
MPPT Operating Voltage Range |
25-60V |
|
|
Startup Voltage |
20V |
|
|
Overvoltage Class DC Port |
II |
|
|
DC Port Backfeed Current |
0 A |
|
|
Max. Input Current |
2 × 15 A |
|
|
PV Array Requirement |
2x1 Ungrouned array; No Additional PV side protection required |
|
|
AC Output Data |
||
|
Peak Output Power |
2400W |
|
|
Max. Continuous Output Power |
800W |
|
|
Max. Continuous Output Current |
3.6A |
|
|
Nominal output voltage |
220/230Vac(187-278Vac) |
|
|
Nominal Frequency/Range |
50HZ/60HZ |
|
|
Extended Frequency/Range |
45~55Hz / 55~65Hz |
|
|
AC Short Circuit Current |
7.5A |
|
|
Max. Units Per Branch Circuit |
5 |
|
|
Overvoltage Class AC Port |
III |
|
|
Power Factor(Adjustable) |
>0.99 Default, 0.8 Leading...0.8 Lagging... |
|
|
Level of Harmonics Distortion |
<3% |
|
|
AC Protection Required |
AC output side need 63A circuit breaker(on grid modle) |
|
|
Efficiency |
||
|
CEC Weighted Efficiency |
95% |
|
|
Peak Inverter Efficiency |
95.50% |
|
|
Static MPPT Efficiency |
99% |
|
|
Night Time Power Consumption |
＜50mW |
|
|
Mechanical Data |
||
|
Operating Ambient Temperature Range |
-40 °C to +65 °C(-40 °F to +149 ° F ) |
|
|
Storage Ambinet Temperature |
-40 °C to +85 °C(-40 °F to +185° F ) |
|
|
Relative Humidity Range |
4% to 100% (condensing) |
|
|
Connector type: DC |
MC4 |
|
|
Dimensions(W*H*D) |
218*245*42mm |
|
|
Weight |
3 KG |
|
|
Cooling |
Natural Convection-No Fans |
|
|
Approved for Wet Locations |
Yes |
|
|
Enclosure Rating |
IP67 |
|
|
AC Cable Length(Customizable) |
Standard 2.5m(customized available) |
|
|
Features |
||
|
Communication |
WIFI |
|
|
Monitoring |
Support remote web page monitoring and mobile APP by WoCor Poweray Cloud |
|
|
Compliance |
Inmetro, UL1741, VDE4105, VDE0126, CE,EN50549... |
|
Product Feature And Application of the 800W 2MPPT Single-Phase Microinverter
Solar panels output voltage <60VDC, decrease the risk of an electrical fire.One panel match one MPPT, increase 5-15% power in production vs string inverters.
Keep each panel to work individually, avoid the impact of partial shadows on the entire solar system
Independently tracking each of solar panels production, easy to identify each solar panel performs.
Flexible application, could switch to off-grid mode to supply AC power to home devices.
Lightweight and compact with plug-and-play connectors, easy to in stall.
App monitor the running station anytime, anywhere.
